KSK-1A87 Reed Switches

The KSK-1A87 series reed switch is a long life switch with a glass length of 10.0mm and diameter of 2.0mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC.

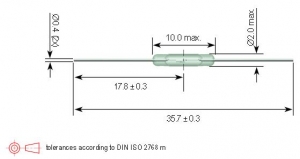

*Overall Length :35.5mm (1.397 inchs)
*Glass Length Max :10.0mm (0.394 inchs)
*Glass Dia Max :2.00mm (0.078 inchs)
*Lead Dia :0.4mm (0.015 inchs)
*Contact Form :1A (SPST) Normally Open (N.O.)
*Pull-In Range :10-40 AT
*Rated Power Max. :10W/200VDC/0.5 Amp DC

General purpose, automotive, test and measurement (ATE)
