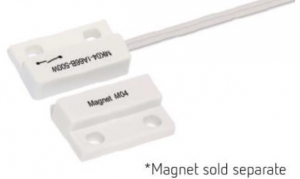

MK04 Reed Sensors

MK04 sensors are magnetically operated Reed proximity switches designed for screw mounting. The sensor should be mounted on a fixed surface with the actuating magnet on the moving surface. Introduction or removal of the magnetic field determines the closing and opening of the Reed Switch.

Contact Form 1A, 1B, 1C
Rated Power,max:10W
Switching Voltage,max:400V
Switching Current,max:0.5A

Position and limit switch
Pneumatic or hydraulic actuator position indication and end travel limit switch
Door and window contacts
Security system applications
Level Sensor (use with magnetic floats for water level detection in coffee makers, washing machines, dishwashers)
