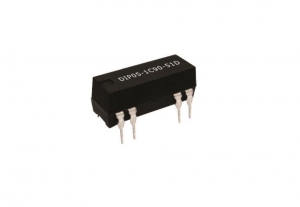

DIP Reed Relays

General purpose dual in-line (DIL) IC compatible DIP Series Reed Relay supplied in a rugged thermoset overmolded package. Available with dielectric strength 4.25kVDC. Optional diode. UL approval.

*Coil Voltage (VDC):3, 5, 12, 15, 24
*Coil Resistance (Ω):500-2000
*Contact Form:1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover, 2A (DPST) Normally Open (N.O.)
*Rated Power Max. :50W/500VDC/2A

General purpose, medical equipment, telecommunications, test and measurement (ATE)
