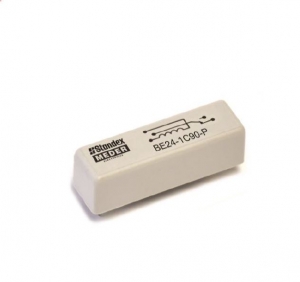

BE Reed Relays

The BE series reed relays is our most versatile general purpose relay offering the most options: choose between a metal and a plastic housing, a wide range of pin configurations, either 1 to 5 form A switches, 1 to 2 form C switches, 2 Form A and 2 Form B switches or 1 to 2 bistable (E) Form A switches are offered.

Special low thermal versions are also available. The BE relay series is epoxy sealed with a durable flexibly Polyurethane resin. Versions with an extremely high insulation resistance of 1014 Ω achieved through a special PU potting compound are also available for special requirements of test systems, medical equipment and precision measuring devices. This series range of applications is very wide-spread due to the variety of possible contact combinations:

Coil Voltage (VDC)5 to 24
Coil Resistance (Ohm)30 to 7845
Contact Form 1 or 2 (A, B, C) {E Latchin

Telecommunication
Medical equipment
Test and measurement
General applications
Photovoltaic systems
