KSK-1A66 Reed Switches

The KSK-1A66 series reed switch is a miniature high automotive grade reed switch. Glass length of 14.0mm and diameter of 2.2mm. Rated power 10 W, Switching voltage 180 VDC, Switching current 0.5 Amp DC. Most used, UL approval.

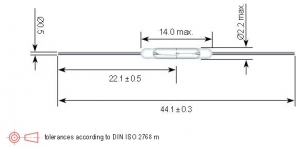

*Overall Length :44.1mm (1.736 inchs)
*Glass Length Max :14.0mm (0.551 inchs)
*Glass Dia Max :2.20mm (0.086 inchs)
*Lead Dia :0.5mm (0.019 inchs)
*Contact Form :1A (SPST) Normally Open (N.O.)
*Pull-In Range :10-40 AT
*Rated Power Max. :10W/180VDC/0.5 Amp DC

Automotive, general purpose, industrial
