KSK-1A35 Reed Switches

KSK-1A35 Series Reed Switch has a glass length of 10.5mm and diameter of 2.1mm. Rated power 20 W, Switching voltage 200 VDC, Switching current 1 Amp DC. UL approval, flat leads.

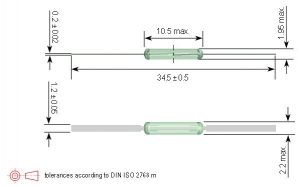

*Overall Length :34.5mm (1.358 inchs)
*Glass Length Max :10.5mm (0.413 inchs)
*Glass Dia Max :2.20mm (0.086 inchs)
*Lead Dia :1.2mm (0.047 inchs) x 0.2mm (0.008 inchs)
*Contact Form :1A (SPST) Normally Open (N.O.)
*Pull-In Range :10-40 AT
*Rated Power Max. :20W/200VDC/1 Amp DC

General purpose, automotive, test and measurement (ATE)
