KSK-1A80 Reed Switches

Ultraminiature KSK-1A80 Series reed switch featuring a close differential and glass length of 7.0mm and diameter of 1.8mm.Rated power 10 W, Switching voltage 170 VDC, Switching current 0.5 Amp DC.Most used, UL approval.

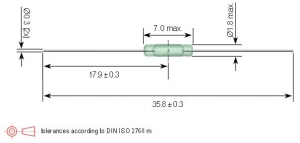

*Overall Length :35.8mm (1.409 inchs)
*Glass Length Max :7.0mm (0.275 inchs)
*Glass Dia Max :1.80mm (0.070 inchs)
*Lead Dia :0.3mm (0.011)
*Contact Form : 1A (SPST) Normally Open(N.O.)
*Pull-In Range :10-40 AT
*Rated Power Max. :10W/170VDC/0.5 Amp DC

General purpose, medical equipment, test and measurement (ATE)
