KSK-SME501 Reed Switches

The SME501 series reed switch is a miniature reed switch featuring a glass length of 12.7mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC/AC. Most used.

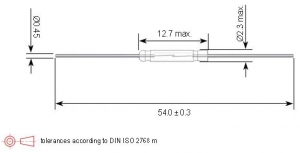

*Overall Length:54.0mm (2.125 inchs)
*Glass Length Max:12.7mm(0.500 inchs)
*Glass Dia Max:2.30mm (0.090 inchs)
*Lead Dia:0.45mm (0.017 inchs)
*Contact Form:1A (SPST) Normally Open (N.O.)
*Pull-In Range:10-35 AT
*Rated Power Max:10W/200VDC/0.5 Amp DC/AC

Automotive, general purpose, industrial
