ORD611 Reed Switches

Miniature Reed Switch ORD611 featuring a glass length of 10.0mm and diameter of 2.0mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.3 Amp DC.

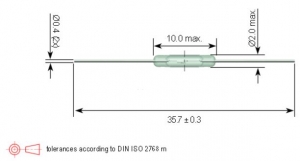

*Overall Length : 35.7 mm(1.405 inches)
*Glass Length Max. : 10.0mm (0.393 inches)
*Glass Dia. Max. : 2.0 mm(0.078 inches)
*Lead Dia.: 0.4 mm(0.015 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 8-40 AT
*Rated Power Max. : 10W/200VDC/0.3 Amp DC

Automotive, household appliance, control equipment, telecommunications, instrumentation
