ORD229 Reed Switches

Reed Switch ORD229 is a high power reed switch with glass length of 21.0mm and diameter of 2.75mm. Rated power 50 W, Switching voltage 350 VDC, Switching current 0.7 Amp DC.

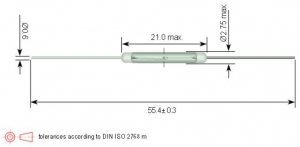

*Overall Length : 55.4 mm (2.181 inches)
*Glass Length Max. : 21.0 mm(0.826 inches)
*Glass Dia. Max. : 2.75 mm(0.108 inches)
*Lead Dia.: 0.6 mm(0.023 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 20-60 AT
*Rated Power Max. : 50W/350VDC/0.7 Amp DC

Automotive, test and measurement (ATE), high power, high voltage
