ORD2211H Reed Switches

Reed Switch ORD2211H is a high power reed switch with glass length of 16.5mm, diameter of 2.7mm, and longer lead length of 57.0mm. Rated power 50 W, Switching voltage 100 VDC, Switching current 0.5 Amp DC.

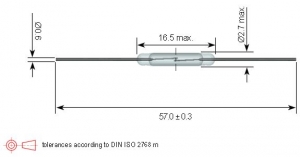

*Overall Length : 57.0 mm (2.244 inches)
*Glass Length Max. : 16.5 mm (0.649 inches)
*Glass Dia. Max. : 2.70 mm (0.106 inches)
*Lead Dia.: 0.6 mm (0.023 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 20-40 AT
*Rated Power Max. : 50W/100VDC/0.5 Amp DC

General purpose, test and measurement (ATE), high power
