ORD221 Reed Switches

Miniature offset Reed Switch ORD221 features a glass length of 13.0mm and diameter of 2.3mm and is designed for medium-level loads <100 V. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.3 Amp DC.

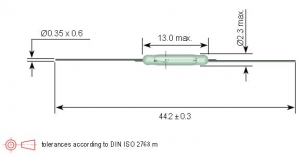

*Overall Length:44.2mm (1.740 inches)
*Glass Length Max.:13.0 mm(0.512 inches)
*Glass Dia. Max. :2.30 mm(0.090 inches)
*Lead Dia.:0.35mm (0.014 inches) x 0.6mm (0.024inches)
*Contact Form:1A (SPST) Normally Open (N.O.)
*Pull-In Range: 10-30 AT
*Rated Power Max.:10W/100VDC/0.3 Amp DC

General purpose, automotive electronics, household appliance,  measurement equipment, telecommunications
