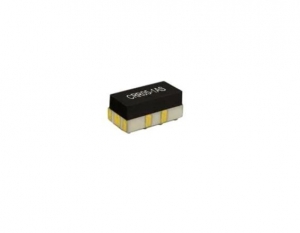

CRR Reed Relays

Ultraminiature surface mount (SMD) low-profile CRR Series Reed Relay with high insulation resistance (IR) typical 10^13 Ω. Instrumentation grade relay comes in a rugged thermoset overmolded package with ceramic substrate. Supplied in tape and reel according to IEC 286/part 3. Ball grid array (BGA) optional. UL approval.

*Coil Voltage (VDC):3, 5
*Coil Resistance (Ω):70-150
*Contact Form:1A (SPST) Normally Open (N.O.)
*Rated Power Max. :10W/170VDC/0.5A

Medical equipment, telecommunications, test and measurement (ATE)
