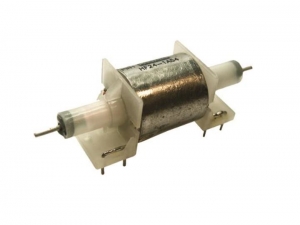

HF Reed Relays

The HF series high frequency reed relay and high power reed relay is capable of carry currents of 5A@30MHz. Specially packaged coil with a PCB pin out for the coil only. This high frequency reed relays’ switch contacts are available for direct wiring (sky wiring). Equipped with a patented external electrostatic and magnetic shield. RF reed relay has a breakdown voltage up to 9kVDC.

*Coil Voltage (VDC):5, 12, 24
*Coil Resistance (Ω):250-1000
*Contact Form:1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 2A (DPST) Normally Open (N.O.)
*Rated Power Max. :25W/500VDC/1.5A

Antenna transmitters and receivers, radio transmitters 1 MHz to 30MHz, telecommunications equipment
