SHV Reed Relays

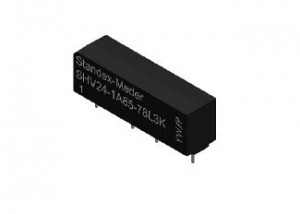

The SHV reed relay is a single in-line and high voltage relay or instrumentation grade reed relay supplied in a molded housing, capable of switching up to 1kVDC and breakdown voltage of 4kVDC. This high voltage reed relay series features an insulation resistance >5 x 10^12 Ω and utilizes minimum PCB area, at only 50% compared to our DIP and DIL reed relay series. It is even smaller than the former potted SIL-HV Reed Relay.

*Coil Voltage (VDC):05, 12
*Coil Resistance (Ω):140-500
*Contact Form:1A (SPST) Normally Open (N.O.)
*Rated Power Max. :100W/1,000VDC/1A

Automated test equipment (ATE), battery powered devices, general purpose electronic test equipment, medical equipment, photovoltaics, portable defibrillators, replacement of mercury wetted relays, telecommunications
