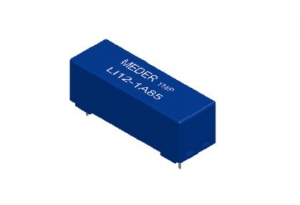

LI Reed Relays

The LI series is a high voltage reed relay and high insulation reed relay that is epoxy encapsulated. This high voltage reed relay features a high insulation resistance (IR) >10^13 Ω and is capable of switching up to 1kVDC, breakdown voltage of 4.2kVDC, isolation voltage to 7kVDC. UL approval.

*Coil Voltage (VDC):5, 12, 24
*Coil Resistance (Ω):200-3600
*Contact Form:1A (SPST) Normally Open (N.O.)
*Rated Power Max. :100W/1000VDC/1A

Automated test equipment (ATE), battery powered devices, general purpose electronic test equipment, medical equipment, photovoltaics, portable defibrillators, replacement of mercury wetted relays, telecommunications
