KSK-1C90F Reed Switch
The KSK-1C90F series reed switch is a miniature (Form C) changeover reed switch or also referred to as single pole double throw (SPDT). Glass length of 14.0mm and diameter of 2.54mm. Rated power 10 W, Switching voltage 175 VDC, Switching current 0.5 Amp DC. N.C. lead has a dog leg bend. UL approval.

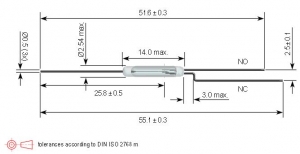

*Overall Length :54.5mm (2.145 inchs)
*Glass Length Max :14.0mm (0.551 inchs)
*Glass Dia Max :2.54mm (0.100 inchs)
*Lead Dia :0.5mm (0.019 inchs)
*Contact Form :1C (SPDT) Changeover
*Pull-In Range :15-40 AT
*Rated Power Max. :10W/175VDC/0.5 Amp DC
General purpose, industrial, test and measurement (ATE)
