KSK-1C90U Reed Switch

The KSK-1C90U series reed switch is a miniature (Form C) changeover reed switch or single pole double throw (SPDT) reed switch. Glass length of 14.0mm and diameter of 2.54mm. Rated power 10 W, Switching voltage 175 VDC, Switching current 0.5 Amp DC. Most used, UL approval.

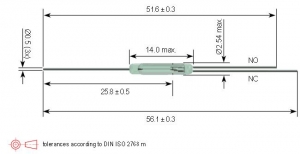

*Overall Length :56.1mm (2.208 inchs)
*Glass Length Max :14.0mm (0.551 inchs)
*Glass Dia Max :2.54mm (0.100 inchs)
*Lead Dia :0.5mm (0.019 inchs)
*Contact Form :1C (SPDT) Changeover
*Pull-In Range :15-40 AT
*Rated Power Max. :10W/175VDC/0.5 Amp DC

General purpose, industrial, test and measurement (ATE)
