KSK-1A52 Reed Switch

The KSK-1A52 series reed switch is a high breakdown voltage reed switch with glass length of 21.0mm and diameter of 2.75mm. Rated power 50 W, Switching voltage 350 VDC, Switching current 0.5 Amp DC.

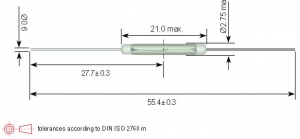

*Overall Length :55.4mm (2.181 inchs)
*Glass Length Max :21.0mm (0.826 inchs)
*Glass Dia Max :2.75mm (0.108 inchs)
*Lead Dia :0.6mm (0.023 inchs)
*Contact Form :1A (SPST) Normally Open (N.O.)
*Pull-In Range :15-70 AT
*Rated Power Max. :50W/350VDC/0.5 Amp DC

Automotive, test and measurement (ATE), high power, high voltage
