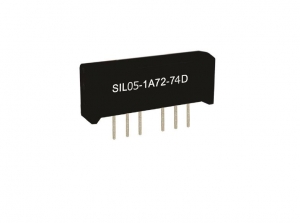

SIL Reed Relays
General purpose instrumentation grade single in-line SIL Series Reed Relay is supplied in a rugged thermoset overmolded package. Utilizes minimum PCB area at only 50% compared to our DIP and DIL series. Available with dielectric strength 4kVDC. Optional diode and magnetic shield. UL approval.
*Coil Voltage (VDC):3, 5, 12, 15, 24
*Coil Resistance (Ω):80-2000
*Contact Form:1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover
*Rated Power Max. :50W/500VDC/2
General purpose, security, telecommunications, test and measurement (ATE)
