KSK-SME560 Reed Switches
The miniature SME560 series reed switch is a high stability switch featuring a glass length of 14.2mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 1 Amp DC/AC. Most used.

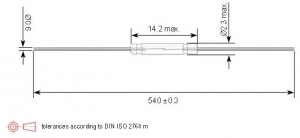

*Overall Length:54.0mm (2.125 inchs)
*Glass Length Max:14.2mm (0.559 inchs)
*Glass Dia Max:2.30mm (0.090 inchs)
*Lead Dia:0.6mm (0.023 inchs)
*Contact Form:1A (SPST) Normally Open (N.O.)
*Pull-In Range:10-50 AT
*Rated Power Max:10W/200VDC/1 Amp DC/AC
Automotive, general purpose, industrial
