ORD213 Reed Switches
Reed Switch ORD213 has a glass length of 7.0mm and diameter of 1.8mm. And a rated power of 1 W, switching voltage 24 VDC, and switching current 0.1 Amp DC. This ultraminiature reed switch is one of our most widely used switches. It features a close differential between the open and closure values or what is referred to as a narrow hysteresis. This is key in achieving a precise switching point as with small portable devices.

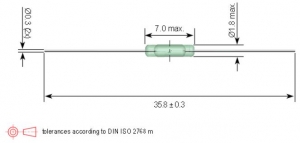

*Overall Length : 35.8 mm (1.409 inches)
*Glass Length Max. : 7.0 mm (0.275 inches)
*Glass Dia. Max. : 1.80 mm (0.070 inches)
*Lead Dia.: 0.3 mm (0.011 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 10-40 AT
*Rated Power Max. : 1W/24VDC/0.1 Amp DC
General purpose, medical equipment, test and measurement (ATE)
