ORD211 Reed Switches

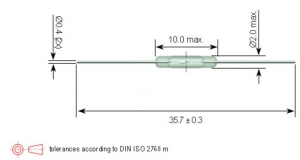

Miniature Reed Switch ORD211 featuring a glass length of 10.0mm and diameter of 2.0mm. Rated power 1 W, Switching voltage 24 VDC, Switching current 0.1 Amp DC.
*Overall Length : 35.7 mm (1.405 inches)
*Glass Length Max. : 10.0 mm (0.393 inches)
*Glass Dia. Max. : 2.0 mm (0.078 inches)
*Lead Dia.: 0.4 mm (0.015 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 10-40 AT
*Rated Power Max. : 1W/24VDC/0.1 Amp DC
General purpose, automotive, test and measurement (ATE)
