ORD228VL Reed Switches
Miniature Reed Switch ORD228VL featuring high performance. Glass length of 14.0mm and diameter of 2.2mm. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.5 Amp DC. Most used.

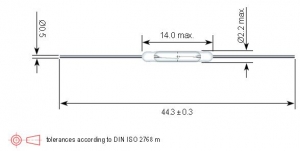

*Overall Length : 44.3 mm (1.744 inches)
*Glass Length Max. : 14.0 mm (0.551 inches)
*Glass Dia. Max. : 2.2 mm (0.086 inches)
*Lead Dia.: 0.5 mm (0.019 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 10-40 AT
*Rated Power Max. : 10W/100VDC/0.5 Amp DC
Automotive, general purpose, industrial
