ORD311 Reed Switches
Reed Switch ORD311 features a glass length of 7.0mm and diameter of 1.8mm. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.5 Amp DC. Most used.

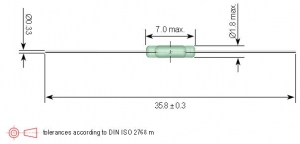

*Overall Length : 35.8 mm (1.409 inches)
*Glass Length Max. : 7.0 mm (0.275 inches)
*Glass Dia. Max. : 1.80 mm (0.070 inches)
*Lead Dia.: 0.33 mm (0.013 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 10-40 AT
*Rated Power Max. : 10W/100VDC/0.5 Amp DC
General purpose, medical equipment, test and measurement (ATE)
