ORD324 Reed Switches
Reed Switch ORD324 is a miniature switch with glass length of 14.0mm and diameter of 2.2mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 0.5 Amp DC. Most used.

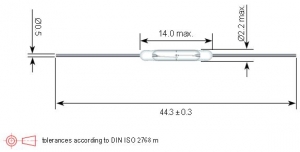

*Overall Length : 44.3 mm (1.744 inches)
*Glass Length Max. : 14.0 mm (0.551 inches)
*Glass Dia. Max. : 2.2 mm (0.086 inches)
*Lead Dia.: 0.5 mm (0.019 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 10-40 AT
*Rated Power Max. : 10W/200VDC/0.5 Amp DC
Automotive, general purpose, industrial
