ORD2210V Reed Switches
Reed Switch ORD2210V is a vacuum high breakdown voltage reed switch. Glass length of 21.0mm and diameter of 2.75mm. Rated power 100 W, Switching voltage 350 VDC, Switching current 1 Amp DC.

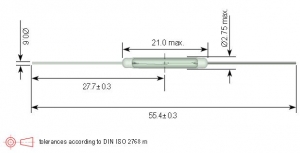

*Overall Length : 55.4 mm (2.181 inches)
*Glass Length Max. : 21.0 mm (0.826 inches)
*Glass Dia. Max. : 2.75 mm (0.108 inches)
*Lead Dia.: 0.6 mm (0.023 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 20-60 AT
*Rated Power Max. : 100W/350VDC/1 Amp DC
General purpose, high power, high voltage, industrial
