ORD9215 Reed Switches
Reed Switch ORD9215 has a glass length of 17.0mm and diameter of 2.8mm. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.4 Amp DC.

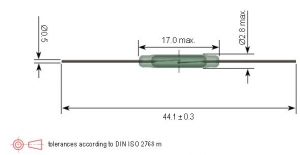

*Overall Length : 44.1 mm (1.736 inches)
*Glass Length Max. : 17.0 mm (0.668 inches)
*Glass Dia. Max. : 2.8 mm (0.110 inches)
*Lead Dia.: 0.5 mm (0.019 inches)
*Contact Form : 1A (SPST) Normally Open (N.O.)
*Pull-In Range : 10-50 AT
*Rated Power Max. : 10W/100VDC/0.4 Amp DC
General purpose, household appliance, measurement equipment, telecommunications
