KSK-1A69 Reed Switch
The KSK-1A69 series reed switch is capable of switching high current up to 3 Amp DC as well as high voltage switching up to 10,000 VDC. Glass length of 53.4mm and diameter of 5.4mm. Rated power 50 W, Switching voltage 10,000 VDC, Switching current 3 Amp DC. Flat leads.

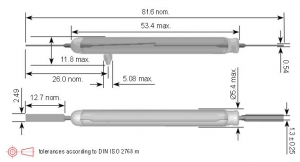

*Overall Length :81.6mm (3.212 inchs)
*Glass Length Max :53.4mm (2.102 inchs)
*Glass Dia Max :5.40mm (0.212 inchs)
*Lead Dia :2.49mm (0.098 inchs) x 0.54mm (0.213 inchs)
*Contact Form :1A (SPST) Normally Open (N.O.)
*Pull-In Range :95-170 AT
*Rated Power Max. :50W/10,000VDC/3 Amp DC
Medical equipment, test and measurement (ATE), high power, high voltage, RF
