KSK-1A85 Reed Switch
The KSK-1A85 series reed switch is a vacuum high power and high voltage switch with glass length of 21.0mm and diameter of 2.75mm. Rated power 100 W, Switching voltage 1,000 VDC, Switching current 1 Amp DC. Most used, UL approval.

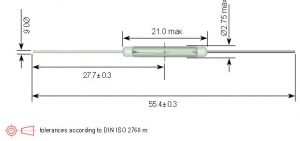

*Overall Length :55.5mm (2.185 inchs)
*Glass Length Max :21.0mm (0.826 inchs)
*Glass Dia Max :2.75mm (0.108 inchs)
*Lead Dia :0.6mm (0.023 inchs)
*Contact Form :1A (SPST) Normally Open (N.O.)
*Pull-In Range :15-55 AT
*Rated Power Max. :100W/1,000VDC/1 Amp DC
Automotive, test and measurement (ATE), high power, high voltage
